Kubernetes Networking

To access the application over the network, Kubernetes services must be used to expose the pods to external traffic and load balancing the traffic across multiple pods.

The advanced networking capabilities in Kubernetes allows the Pods and Services to communicate inside the cluster’s network and externally.

You can access the deployed pods only from the worker node where it is running and cannot be accessed even from your Kubernetes master nodes or from any other nodes until it is exposed through services.

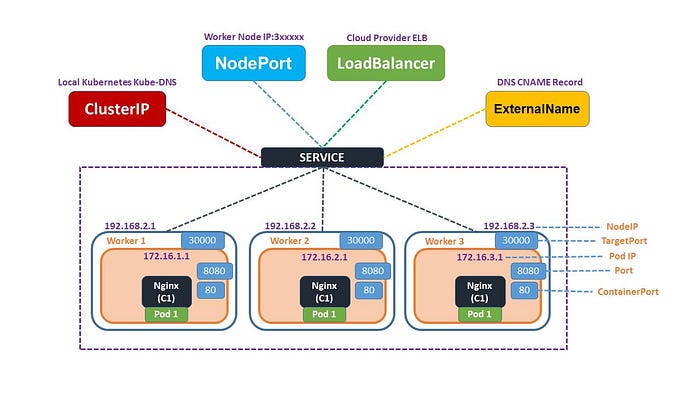

We’ll look into the following services how they can be used in different ways.

-Cluster IP
-Target Ports
-Node Port
-External IPs
-Load Balancer

Cluster IP

Cluster IP is the default approach when creating a Kubernetes Service. The service is allocated an internal IP that other components can use to access the pods.

Having a single IP address enables the service to be load balanced across multiple Pods.

Services are deployed via kubectl apply -f clusterip.yaml.

The definition can be viewed at cat clusterip.yaml

This will deploy a web app with two replicas to showcase load balancing along with a service. The Pods can be viewed at kubectl get pods

It will also deploy a service. kubectl get svc

More details on the service configuration and active endpoints (Pods) can be viewed via kubectl describe svc/webapp1-clusterip-svc

After deploying, the service can be accessed via the ClusterIP allocated.

export CLUSTER_IP=$(kubectl get services/webapp1-clusterip-svc -o go-template='{{(index .spec.clusterIP)}}') echo CLUSTER_IP=$CLUSTER_IP curl $CLUSTER_IP:80

Multiple requests will showcase how the service load balancers across multiple Pods based on the common label selector.

curl $CLUSTER_IP:80

Target Port

Target ports allow us to separate the port the service is available on from the port the application is listening on. TargetPort is the Port on which the application is configured to listen on. Port is how the application will be accessed from the outside.

Similar to previously, the service and extra pods are deployed via kubectl apply -f clusterip-target.yaml

The following commands will create the service.

cat clusterip-target.yaml

kubectl get svc

kubectl describe svc/webapp1-clusterip-targetport-svc

After the service and pods have been deployed, they can be accessed via the cluster IP as before, but this time on the defined port 8080.

export CLUSTER_IP=$(kubectl get services/webapp1-clusterip-targetport-svc -o go-template='{{(index .spec.clusterIP)}}') echo CLUSTER_IP=$CLUSTER_IP curl $CLUSTER_IP:8080

curl $CLUSTER_IP:8080

The application itself is still configured to listen on port 80. Kubernetes Service manages the translation between the two.

NodePort

While TargetPort and ClusterIP make it available inside the cluster, the NodePort exposes the service on each Node’s IP via the defined static port. No matter which Node within the cluster is accessed, the service will be reachable based on the port number defined.

kubectl apply -f nodeport.yaml

When viewing the service definition, notice the additional type and NodePort property defined cat nodeport.yaml

kubectl get svc

kubectl describe svc/webapp1-nodeport-svc

The service can now be reached via the Node’s IP address on the NodePort defined.

curl 172.17.0.32:30080

External IPs

Another approach to making a service available outside of the cluster is via External IP addresses.

Update the definition to the current cluster’s IP address with sed -i 's/HOSTIP/172.17.0.32/g' externalip.yaml

cat externalip.yaml

kubectl apply -f externalip.yaml

kubectl get svc

kubectl describe svc/webapp1-externalip-svc

The service is now bound to the IP address and Port 80 of the master node.

curl 172.17.0.32

Load Balancer

When running in the cloud, such as EC2 or Azure, it’s possible to configure and assign a Public IP address issued via the cloud provider. This will be issued via a Load Balancer such as ELB. This allows additional public IP addresses to be allocated to a Kubernetes cluster without interacting directly with the cloud provider.

As Katacoda is not a cloud provider, it’s still possible to dynamically allocate IP addresses to LoadBalancer type services. This is done by deploying the Cloud Provider using kubectl apply -f cloudprovider.yaml. When running in a service provided by a Cloud Provider this is not required.

When service requests a Load Balancer, the provider will allocate one from the 10.10.0.0/26 range defined in the configuration.

kubectl get pods -n kube-system

kubectl apply -f loadbalancer.yaml

The service is configured via a Load Balancer as defined in cat loadbalancer.yaml

While the IP address is being defined, the service will show Pending. When allocated, it will appear in the service list.

kubectl get svc

kubectl describe svc/webapp1-loadbalancer-svc

The service can now be accessed via the IP address assigned, in this case from the 10.10.0.0/26 range.

export LoadBalancerIP=$(kubectl get services/webapp1-loadbalancer-svc -o go-template='{{(index .status.loadBalancer.ingress 0).ip}}') echo LoadBalancerIP=$LoadBalancerIP curl $LoadBalancerIP

curl $LoadBalancerIP
